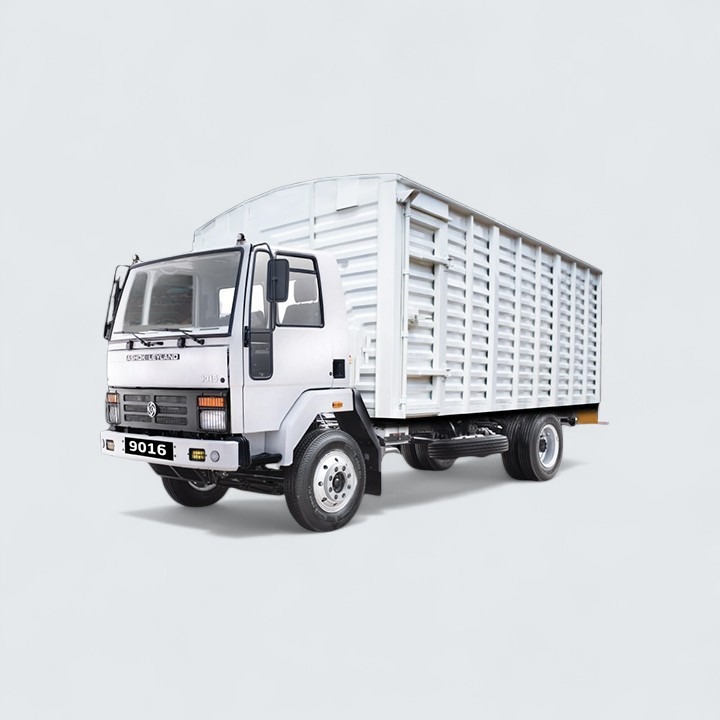

Cargo 9016

Engine: HA6ETI3KN – 6 cylinder turbocharged intercooled diesel inline engine

Bore x Stroke: 104 x 113 mm

Displacement: 5759 cc

Maximum Output: 160 HP at 2400 RPM

Maximum Torque: 550 Nm at 1400 – 1700

Fuel tank capacity: 212 litres

Emission norms: Euro III

Clutch: Air boosted Hydraulically actuated 380 mm diaphragm clutch

Gear Box: ZF S6-36 – 6 speed synchromesh with overdrive
I gear  II gear  III gear   IV gear
6.93:1   4.43 : 1  2.63 : 4  1.51 : 1
V gear  VI gear  Rev-gear
1.0:1       0.84: 1     6.22 : 1

Propeller Shaft:  Rubber mounted centre bearing
No. of shafts: 2 Nos

Rear Axle: Fully floating single speed hypoid gear

Axle capacity: 10 T

Axle Ratio: 4.33 : 1 RAR

Front Axle: Forged ‘I’ section reverse elliot

Axle capacity: 5000kg

Frame: Longitudinal ladder type

Frame dimension: 204 x 76 x 6mm

Suspension: Semi elliptic multi leaf shackle with stabiliser bar on front only

Shock absorber: Double acting, telescopic type

Steering: ZF integral power assisted recirculating ball type

Drive: RHD/LHD

Wheels & Tyres

Tyre size: 825 x 20 – 14PR

Brakes: Full air – Full air dual line ‘S’ cam brakes

Parking brake: Spring actuated brakes on rear only
