Vehicle Specifications

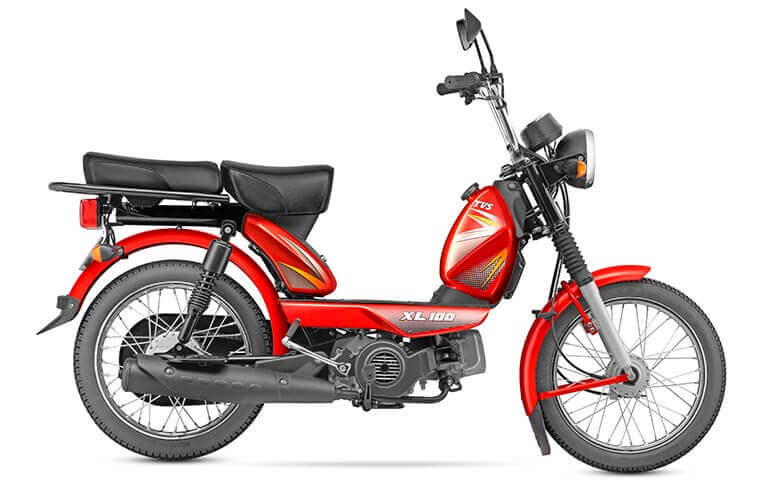

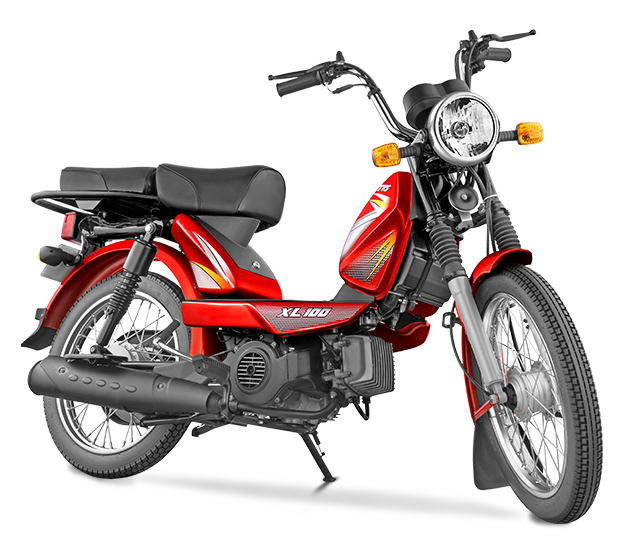

TVS XL 100

Category Brand:
Specifications

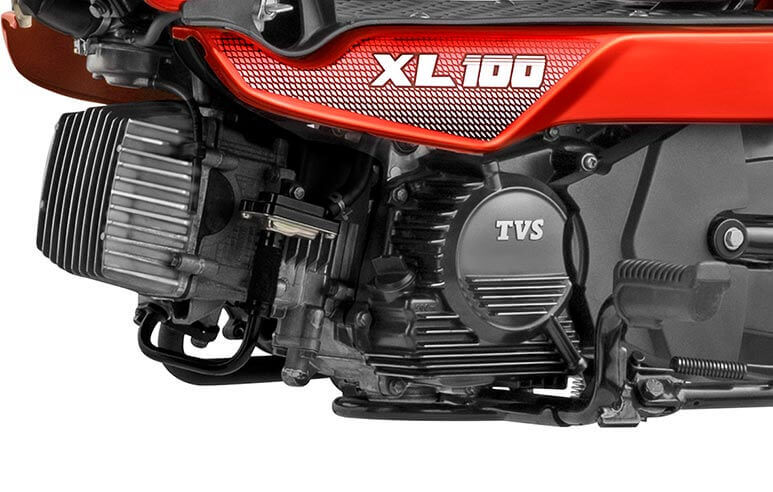

ENGINE

  • Type: 4-Stroke Single Cylinder

  • Displacement: 99.7 cc

  • Bore x Stroke: 51.0 mm × 48.8 mm

  • Max. Power: 4.2 PS @ 6000 rpm

  • Max. Torque: 6.3 Nm @ 3500 rpm

DRIVE

  • Clutch: Centrifugal Wet Type

  • Primary Drive: Single Speed Gear Box

  • Secondary Drive: Roller Chain Drive


DIMENSIONS

  • Wheelbase: 1215 mm

  • Fuel tank capacity: 4 ltr (including 1.3 ltr reserve)

  • Tyre size (Front & Rear): 2.5 x 16 & 2.5 x 16

  • Brake drum (Front & Rear): 80 mm dia & 110 mm dia


ELECTRICALS

  • Ignition system: Fly wheel magneto 12 V, 90 W @ 5000 rpm

  • Head lamp: 12 V – 35/35 W

  • Tail lamp: 12 V – 5 W

  • Brake lamp: 12 V – 21 W

  • Speedo lamp: 12 V – 3.4 W

  • Horn: 12 V – DC Type 2A

  • Indicator lamp: 12 V – 10 W


SUSPENSION

  • Suspension Front: Telescopic spring type hydraulic

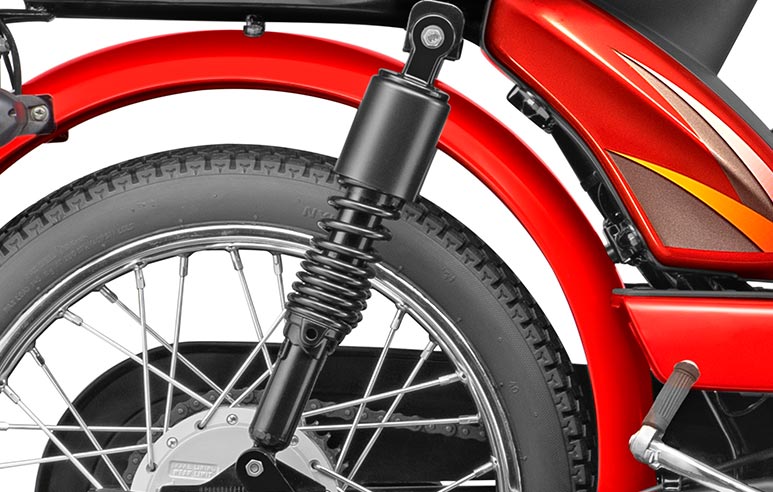

  • Suspension Rear: Swing arm with hydraulic shocks


WEIGHT

  • Dry unladen: 75 kg

  • Gross: 210 kg
